# (PART) Case studies {-}

# Human PBMCs (10X Genomics)

<script>
document.addEventListener("click", function (event) {
    if (event.target.classList.contains("rebook-collapse")) {
        event.target.classList.toggle("active");
        var content = event.target.nextElementSibling;
        if (content.style.display === "block") {
            content.style.display = "none";
        } else {
            content.style.display = "block";
        }
    }
})
</script>

<style>
.rebook-collapse {
  background-color: #eee;
  color: #444;
  cursor: pointer;
  padding: 18px;
  width: 100%;
  border: none;
  text-align: left;
  outline: none;
  font-size: 15px;
}

.rebook-content {
  padding: 0 18px;
  display: none;
  overflow: hidden;
  background-color: #f1f1f1;
}
</style>

## Introduction

This performs an analysis of the public PBMC ID dataset generated by 10X Genomics [@zheng2017massively],
starting from the filtered count matrix.

## Data loading


``` r
library(TENxPBMCData)
all.sce <- list(
    pbmc3k=TENxPBMCData('pbmc3k'),
    pbmc4k=TENxPBMCData('pbmc4k'),
    pbmc8k=TENxPBMCData('pbmc8k')
)
```

## Quality control


``` r
unfiltered <- all.sce
```

Cell calling implicitly serves as a QC step to remove libraries with low total counts and number of detected genes.
Thus, we will only filter on the mitochondrial proportion.


``` r
library(scater)
stats <- high.mito <- list()
for (n in names(all.sce)) {
    current <- all.sce[[n]]
    is.mito <- grep("MT", rowData(current)$Symbol_TENx)
    stats[[n]] <- perCellQCMetrics(current, subsets=list(Mito=is.mito))
    high.mito[[n]] <- isOutlier(stats[[n]]$subsets_Mito_percent, type="higher")
    all.sce[[n]] <- current[,!high.mito[[n]]]
}
```


``` r
qcplots <- list()
for (n in names(all.sce)) {
    current <- unfiltered[[n]]
    colData(current) <- cbind(colData(current), stats[[n]])
    current$discard <- high.mito[[n]]
    qcplots[[n]] <- plotColData(current, x="sum", y="subsets_Mito_percent",
        colour_by="discard") + scale_x_log10()
}
do.call(gridExtra::grid.arrange, c(qcplots, ncol=3))
```

<div class="figure">
<img src="tenx-filtered-pbmc3k-4k-8k_files/figure-html/unref-pbmc-filtered-var-1.png" alt="Percentage of mitochondrial reads in each cell in each of the 10X PBMC datasets, compared to the total count. Each point represents a cell and is colored according to whether that cell was discarded." width="672" />
<p class="caption">(\#fig:unref-pbmc-filtered-var)Percentage of mitochondrial reads in each cell in each of the 10X PBMC datasets, compared to the total count. Each point represents a cell and is colored according to whether that cell was discarded.</p>
</div>


``` r
lapply(high.mito, summary)
```

```
## $pbmc3k
##    Mode   FALSE    TRUE
## logical    2609      91
##
## $pbmc4k
##    Mode   FALSE    TRUE
## logical    4182     158
##
## $pbmc8k
##    Mode   FALSE    TRUE
## logical    8157     224
```

## Normalization

We perform library size normalization, simply for convenience when dealing with file-backed matrices.


``` r
all.sce <- lapply(all.sce, logNormCounts)
```


``` r
lapply(all.sce, function(x) summary(sizeFactors(x)))
```

```
## $pbmc3k
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##   0.234   0.748   0.926   1.000   1.157   6.604
##
## $pbmc4k
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##   0.315   0.711   0.890   1.000   1.127  11.027
##
## $pbmc8k
##    Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
##   0.296   0.704   0.877   1.000   1.118   6.794
```

## Variance modelling


``` r
library(scran)
all.dec <- lapply(all.sce, modelGeneVar)
all.hvgs <- lapply(all.dec, getTopHVGs, prop=0.1)
```


``` r
par(mfrow=c(1,3))
for (n in names(all.dec)) {
    curdec <- all.dec[[n]]
    plot(curdec$mean, curdec$total, pch=16, cex=0.5, main=n,
        xlab="Mean of log-expression", ylab="Variance of log-expression")
    curfit <- metadata(curdec)
    curve(curfit$trend(x), col='dodgerblue', add=TRUE, lwd=2)
}
```

<div class="figure">
<img src="tenx-filtered-pbmc3k-4k-8k_files/figure-html/unref-filtered-pbmc-variance-1.png" alt="Per-gene variance as a function of the mean for the log-expression values in each PBMC dataset. Each point represents a gene (black) with the mean-variance trend (blue) fitted to the variances." width="672" />

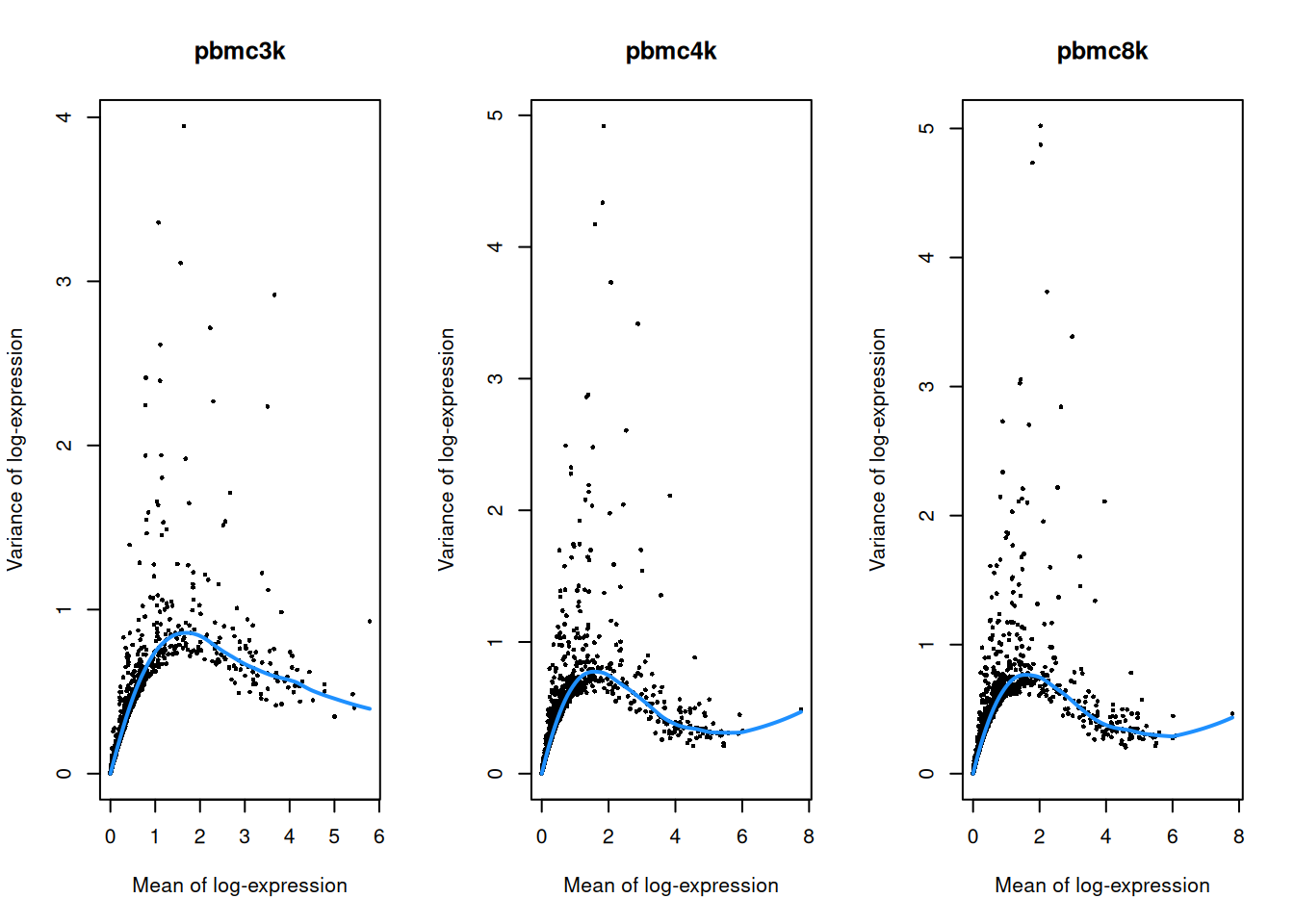

<p class="caption">(\#fig:unref-filtered-pbmc-variance)Per-gene variance as a function of the mean for the log-expression values in each PBMC dataset. Each point represents a gene (black) with the mean-variance trend (blue) fitted to the variances.</p>
</div>

## Dimensionality reduction

For various reasons, we will first analyze each PBMC dataset separately rather than merging them together.
We use randomized SVD, which is more efficient for file-backed matrices.


``` r
library(BiocSingular)
set.seed(10000)
all.sce <- mapply(FUN=runPCA, x=all.sce, subset_row=all.hvgs,
    MoreArgs=list(ncomponents=25, BSPARAM=RandomParam()),
    SIMPLIFY=FALSE)

set.seed(100000)
all.sce <- lapply(all.sce, runTSNE, dimred="PCA")

set.seed(1000000)
all.sce <- lapply(all.sce, runUMAP, dimred="PCA")
```

## Clustering


``` r
for (n in names(all.sce)) {
    g <- buildSNNGraph(all.sce[[n]], k=10, use.dimred='PCA')
    clust <- igraph::cluster_walktrap(g)$membership
    colLabels(all.sce[[n]])  <- factor(clust)
}
```


``` r
lapply(all.sce, function(x) table(colLabels(x)))
```

```
## $pbmc3k
##
##   1   2   3   4   5   6   7   8   9  10
## 475 636 153 476 164  31 159 164 340  11
##
## $pbmc4k
##
##   1   2   3   4   5   6   7   8   9  10  11  12
## 127 594 518 775 211 394 187 993  55 201  91  36
##
## $pbmc8k
##
##    1    2    3    4    5    6    7    8    9   10   11   12   13   14   15
##  292 1603  388   94  738 1035 1049  156  203  153 2098  261   64   14    9
```


``` r
all.tsne <- list()
for (n in names(all.sce)) {
    all.tsne[[n]] <- plotTSNE(all.sce[[n]], colour_by="label") + ggtitle(n)
}
do.call(gridExtra::grid.arrange, c(all.tsne, list(ncol=2)))
```

<div class="figure">
<img src="tenx-filtered-pbmc3k-4k-8k_files/figure-html/unref-filtered-pbmc-tsne-1.png" alt="Obligatory $t$-SNE plots of each PBMC dataset, where each point represents a cell in the corresponding dataset and is colored according to the assigned cluster." width="672" />

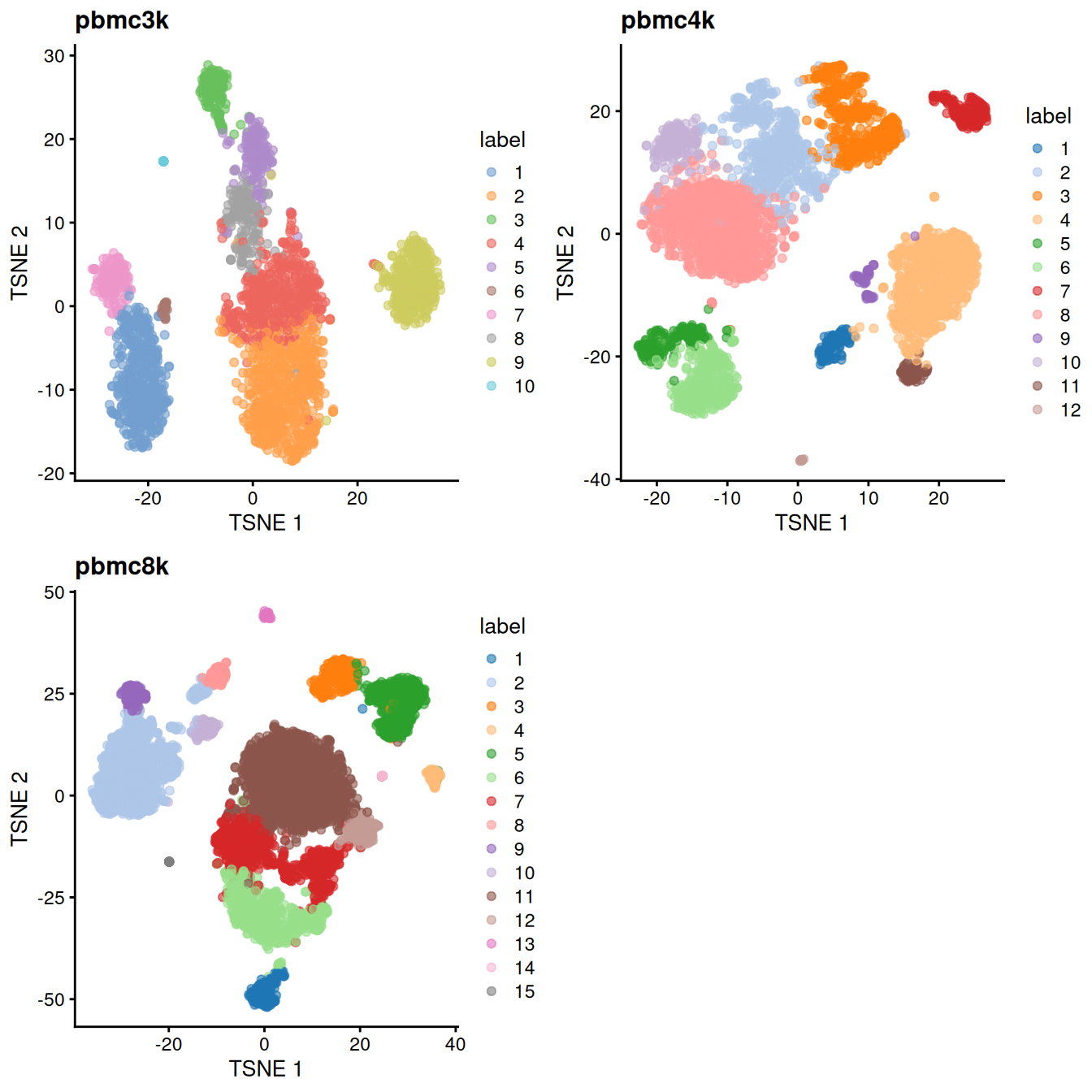

<p class="caption">(\#fig:unref-filtered-pbmc-tsne)Obligatory $t$-SNE plots of each PBMC dataset, where each point represents a cell in the corresponding dataset and is colored according to the assigned cluster.</p>
</div>

## Data integration

With the per-dataset analyses out of the way, we will now repeat the analysis after merging together the three batches.


``` r
# Intersecting the common genes.
universe <- Reduce(intersect, lapply(all.sce, rownames))
all.sce2 <- lapply(all.sce, "[", i=universe,)
all.dec2 <- lapply(all.dec, "[", i=universe,)

# Renormalizing to adjust for differences in depth.
library(batchelor)
normed.sce <- do.call(multiBatchNorm, all.sce2)

# Identifying a set of HVGs using stats from all batches.
combined.dec <- do.call(combineVar, all.dec2)
combined.hvg <- getTopHVGs(combined.dec, n=5000)

set.seed(1000101)
merged.pbmc <- do.call(fastMNN, c(normed.sce,
    list(subset.row=combined.hvg, BSPARAM=RandomParam())))
```

We use the percentage of lost variance as a diagnostic measure.


``` r
metadata(merged.pbmc)$merge.info$lost.var
```

```
##         pbmc3k    pbmc4k   pbmc8k
## [1,] 7.044e-03 3.129e-03 0.000000
## [2,] 6.876e-05 4.912e-05 0.003008
```

We proceed to clustering:


``` r
g <- buildSNNGraph(merged.pbmc, use.dimred="corrected")
colLabels(merged.pbmc) <- factor(igraph::cluster_louvain(g)$membership)
table(colLabels(merged.pbmc), merged.pbmc$batch)
```

```
##
##      pbmc3k pbmc4k pbmc8k
##   1     535    426    830
##   2     331    588   1126
##   3     182    122    217
##   4     150    179    292
##   5     170    345    573
##   6     292    538   1020
##   7     342    630   1236
##   8     437    749   1538
##   9       9     18     95
##   10     97    365    782
##   11     34    120    201
##   12     11     54    159
##   13     11      3      9
##   14      4     36     64
##   15      4      9     15
```

And visualization:


``` r
set.seed(10101010)
merged.pbmc <- runTSNE(merged.pbmc, dimred="corrected")
gridExtra::grid.arrange(
    plotTSNE(merged.pbmc, colour_by="label", text_by="label", text_colour="red"),
    plotTSNE(merged.pbmc, colour_by="batch")
)
```

<div class="figure">
<img src="tenx-filtered-pbmc3k-4k-8k_files/figure-html/unref-filtered-pbmc-merged-tsne-1.png" alt="Obligatory $t$-SNE plots for the merged PBMC datasets, where each point represents a cell and is colored by cluster (top) or batch (bottom)." width="672" />
<p class="caption">(\#fig:unref-filtered-pbmc-merged-tsne)Obligatory $t$-SNE plots for the merged PBMC datasets, where each point represents a cell and is colored by cluster (top) or batch (bottom).</p>
</div>
